AOYWELL New T1+T2 type ASP02-PV DC 1200V 3P DC Surge Protector

Product No.：ASP02-PV T1+T2 DC 1000V 3P
Online Inquiry

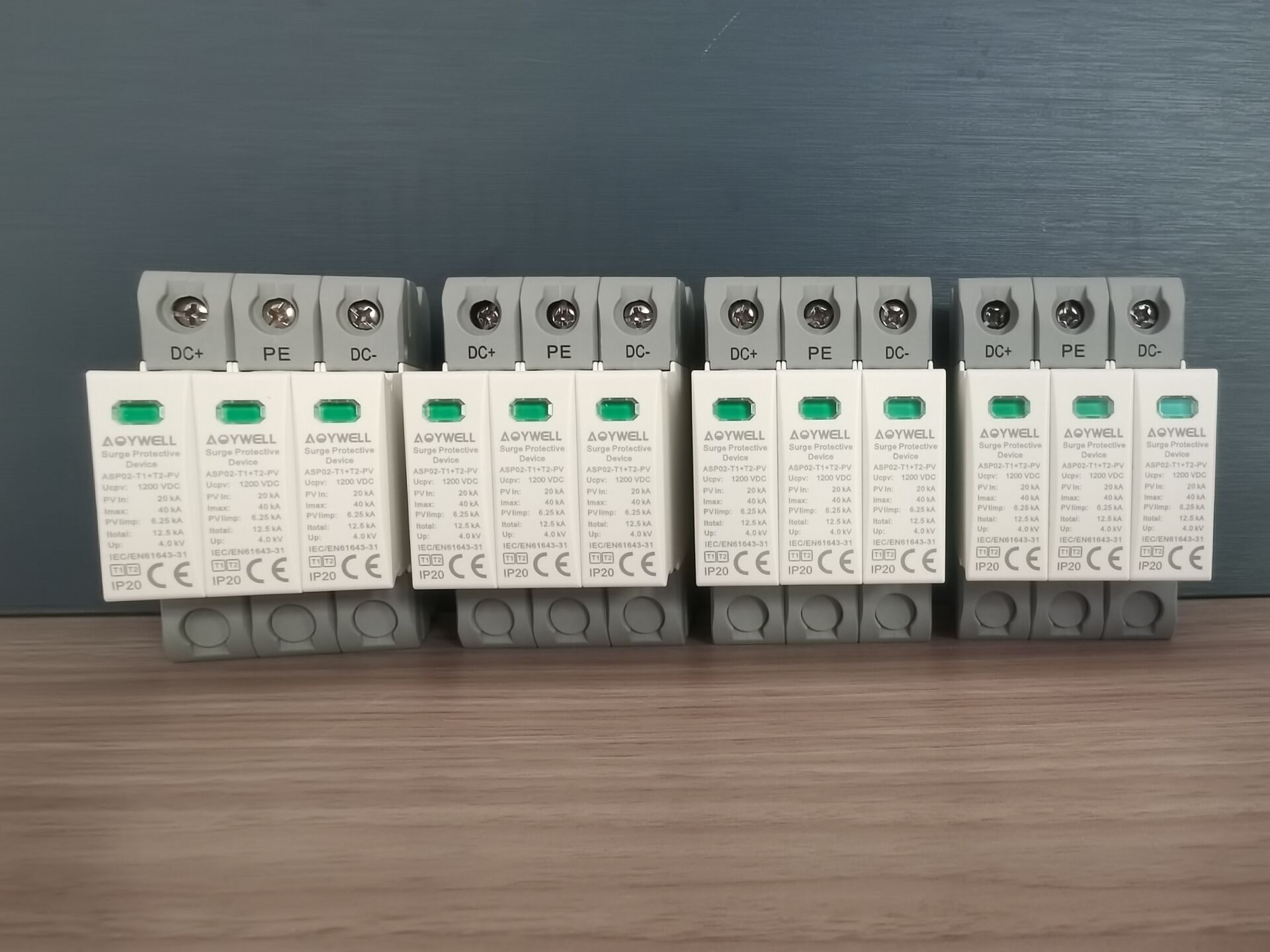

AOYWELL New T1+T2 type ASP02-PV DC 1200V 3P DC Surge Protector

Product introduction

AOYWELL ASP02-PV type three-module photovoltaic surge protective device(SPD) (with three -step DC switching device) features visual indication and optional remote contact signaling (floating changeover contact) for use in PV systems. These complete surge protective devices are suitable for all PV systems in accordance with IEC 60364-7-712. Includes a five year limited warranty.
These prewired solutions consist of a base and locking modules that feature a combined
and short-circuiting (shunting) device with safe electrical isolation to prevent fire damage due to DC arcs. An integrated DC fuse allows safe module replacement without arc formation.
In case of insulation faults in the generator circuit, a reliable and tested fault-resistant Y circuit prevents damage to the surge protective devices.
The green and red visual indicator flags show the module protective status ( green =good, red =replace). Apart from this visual indication, the remote signaling option features a three terminal floating changeover contact that can be used as a make or break contact depending on the particular monitoring system design employed.
SPD is used to protect all kinds of electrical equipment in the power system from lightning over-voltage, operation over-voltage, power frequency transient over-voltage impact damage to an electrical appliance
The electrical circuit or communication lines because of outside interference peak current or voltage suddenly, the surge protector can in a very short time conducting shunt, so as to avoid damage to other equipment surge in the loop Installed front of inverter input and back of inverter output Installed in Parallel the spd is installed in the electric circuit with parallel, the first to play a protective role, the response time in the 25 to 50 nanosecond

Product features

1.Inside over-current and over-heat protection, temperature control open circuit. 2.Module design, convenient installation, could be replaced. 3.Time of response <25ns 4.The color of visible window shows operating status, green means normal, red means abnormal

ASP02-PV series surge protector	ASP02-PV T1+T2 type
Normal PV system voltage	500V/600V	800V	1000V	1200V	1500V
MCOV	600V	800V	1170V DC	1200V DC	1500V DC
Max system discharge current	40ka	40ka	40ka	30ka	30ka
Voltage protection level	≤2kv	≤3.8kv	≤4.5kv	≤4.5kv	≤4.5kv
Voltage protection level at 5ka	≤2kv	≤3.8kv	≤4kv	≤4kv	≤4kv
Integrated Fuse breaking capacity	250VAC/30VDC	250VAC/30VDC	30ka/100v dc	30ka/1200v dc	30ka/1500v dc
/interrupting rating
Technology	Short-current interription overload protection
Operating temperature range	-40℃ + 80℃
Normal discharge current	12.5ka
Response time	<25ns
Operating state/fault indication	green(good) Red(replace)
Conductor rating and cross-sectionalarea	Minimum:60/75℃ 1.5mm2 /14AWG Solid/ Flexible
	Maximum: 60/75℃ 35mm2 /2AWG Standards /25mm2/ 4AWG Flexible
Mounting	35mm din rail per EN 60175
Enclosure material	UL 94V0 thermoplactic
Degree of protection	IP20
Capacity	2 and 3 Modules, din 43880
Standards information	IEC 61643-11 Type2, IEC 61643-1 Class Ⅱ
Product warranty	Five years
