Fuse refers to an electrical appliance that fuses the melt with the heat generated by itself and disconnects the circuit when the current exceeds the specified value. The fuse is a current protector made by using the heat generated by itself to melt the melt after the current exceeds the specified value for a period of time, thereby disconnecting the circuit. Fuses are widely used in high and low voltage power distribution systems and control systems as well as electrical equipment. As a short circuit and overcurrent protector, it is one of the most commonly used protection devices.

AOYWELL have offered a compact, safe and comprehensive fuse holder for solar system.

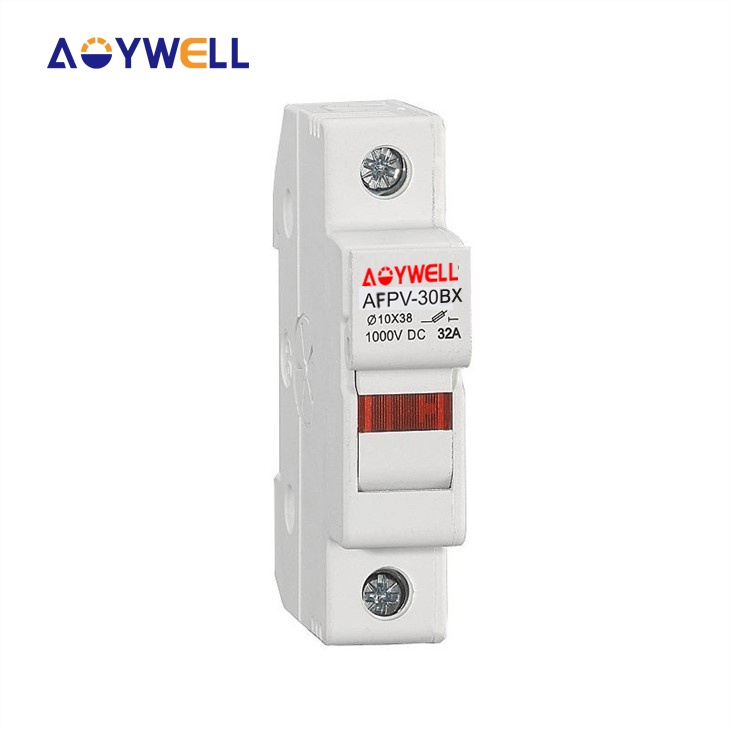

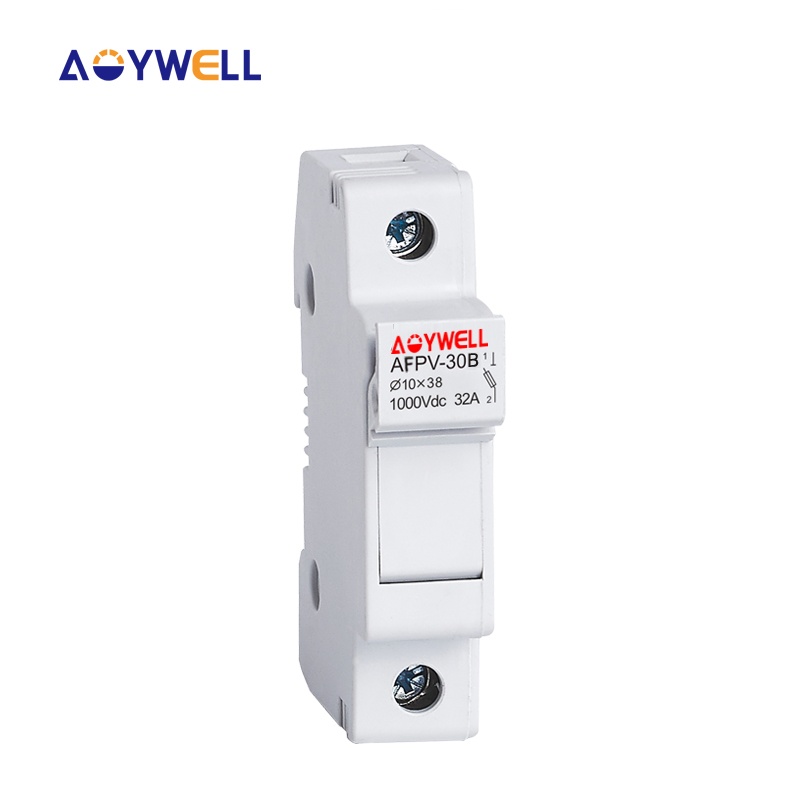

The AFPV 1000V cylindrical fuse holders are specifically designed or the protection of photovoltaic system with extreme ambient temperature conditions. The rated voltage of this fuse holder is up to 1000V, the rated current is up to 50A, and the rated breaking capacity is up to 20KA.

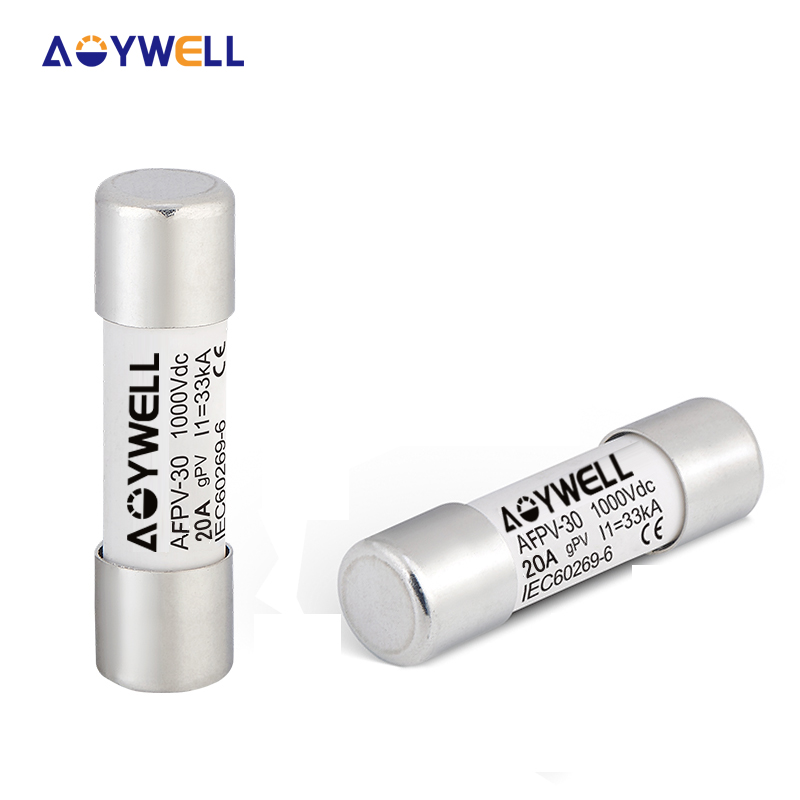

This fuse holders are finger-safe designed to meet with IEC and UL standards to the IP20 grade of protection. The fuse holders are made of tough and durable thermoplastic material. AFPV cylindrical fuse holders are available with and without visual indicator and available in 1-, 2- and 3-pole. They are especially recommended to be used in combination with AFPV1038 and AFPV1451 PV fuse links.

Features & Benefits

Finger-safe design

IP20 Protection Degree

35 mm DIN Rail Mounting

Modular design

Optional visual indicator

Application

Photovoltaic applications

PV string/array level protection

Combiner box applications

Specification

Dimension

AFPV-32B

AFPV1451B

AFPV-32 10*38

AFPV-32 10*38

WHY CHOOSE US:

Wenzhou Aoying Electric wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system

A: GB13539 and CCC certificate.
