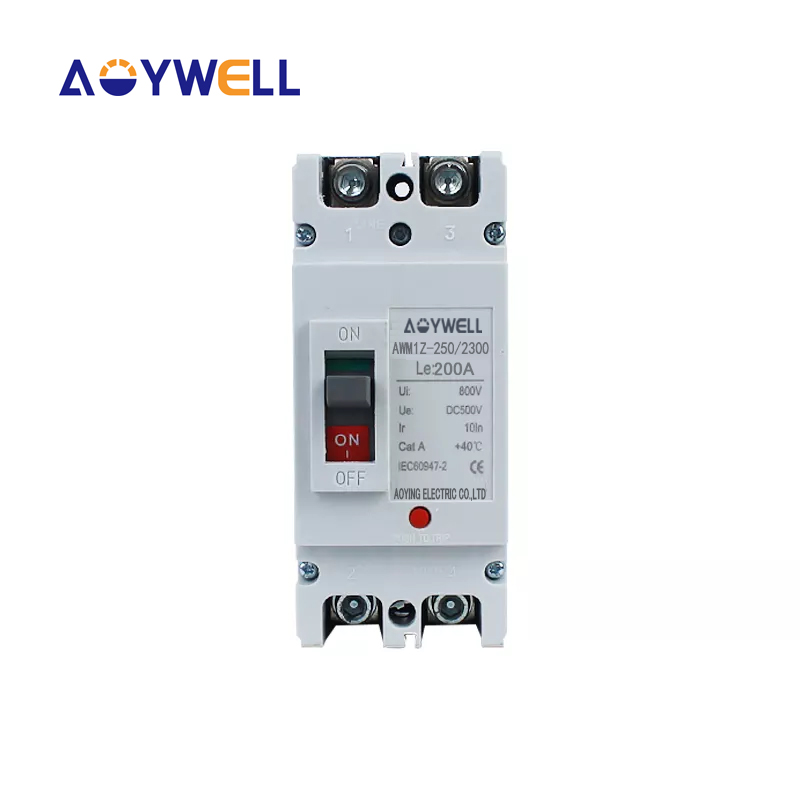

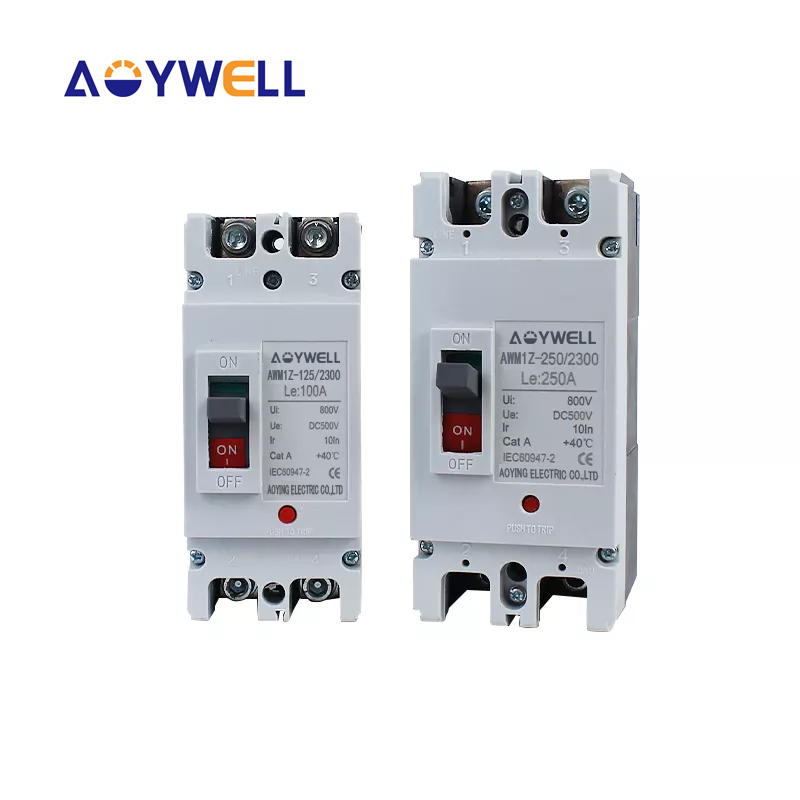

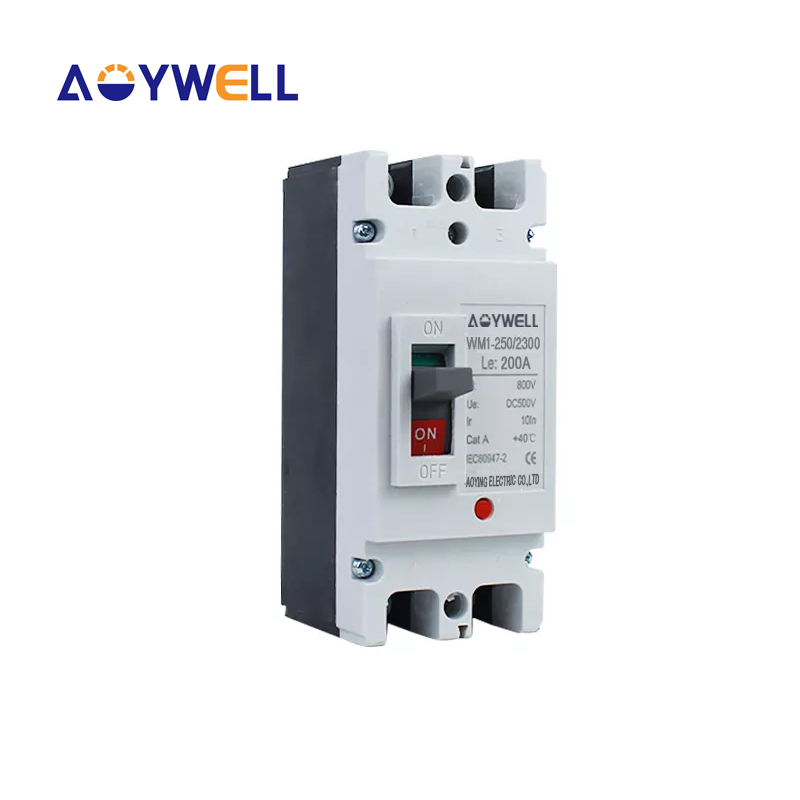

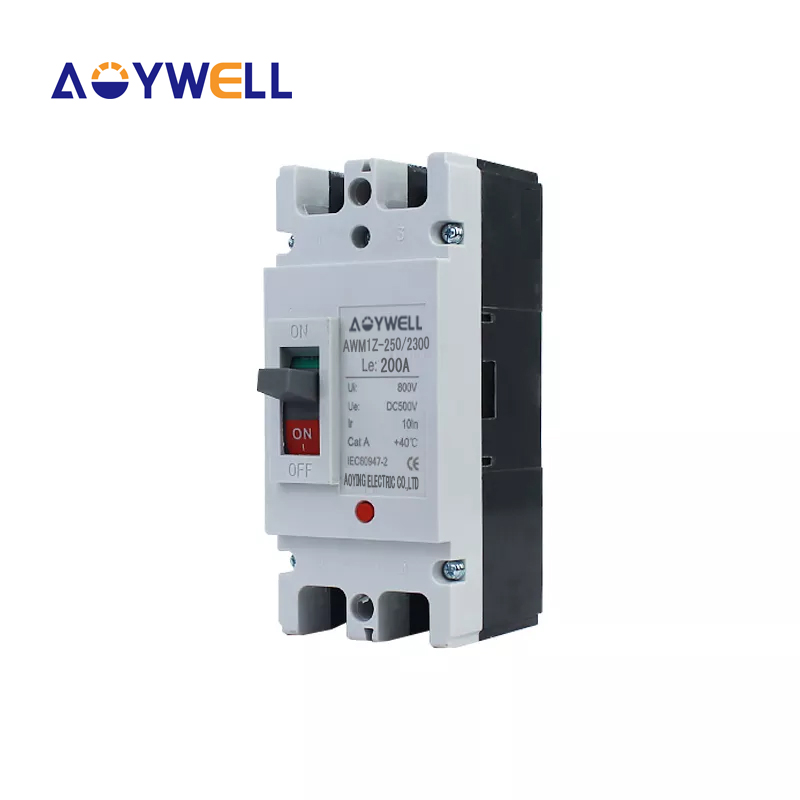

AWM1Z Serise 2P DC 500V 200A Moulded Case Circuit Breaker Switch

Product No.：AWM1Z-250/200 2P
Online Inquiry

AWM1Z Serise 2P DC 500V 200A Moulded Case Circuit Breaker Switch

DC MCCB Application:

AWM1Z series photovoltaic special DC molded case circuit breaker is suitable for DC grid circuit with rated voltage up to DC1200V and rated current of 1250A. DC circuit breaker has overload long delay protection, short circuit instantaneous protection function , used to distribute electric energy and protect circuit and the power supply equipment is protected from the danger of overload, short circuit, etc.
The operating mechanism of the DC circuit breaker has the functions of quick closing and fast reading segmentation, compact structure, small size and convenient use.

DC MCCB Parameters:

Model		AWM1ZM-125	AWM1Z-250	AWM1Z-400	AWM1Z-630	AWM1Z-800	AWM1Z-1250
Rated Current ln (A)		16, 20, 25, 32, 40, 50, 63, 80, 100, 125	100, 125, 140, 160, 180, 200, 225, 250	250, 315, 350, 400	400, 500, 630	630, 700, 800	800, 1000, 1250
Rated Operating Voltage Ue (V) DC		500V, 550V, 750V, 1000V
Rated Insulation Voltage Ui (V)		1000V	1000V	1500V	1500V	1500V	1500V
Uimp (kV)		8kV
Breaking Capacity (kA) Icu (1cs=75% Icu)	250V	35	50	50	50	65	65
	500V	25	35	35	35	50	50
	750V	15	25	25	25	35	35
	1000V	10	15	15	15	20	20
Mechanical Life	Times	7000	7000	4000	4000	2500	2000
Breaking Times (ms)		20

FAQ:

Q 1: Can I get a sample before the formal order?

A: Of course! We also think sample order is the best way to build the trust.

Q 2: What's the service offered by company?

A: We have the professional enginer team which can design and develop the mold to
arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.

Q 3: How does your factory do regarding quality control?

A: Our DC MCCB is produced in accordance with the standards of the ISO9001.
From every single steps all the products will be 100% checked before the shipment.

Q 4: Do you accept OEM business?

A: We accept OEM with your authorization.

Q 5: What's the delivery time?

A: Usually we will ship the goods within 5 working days for stocked products. The specific delivery time depend on the quantity of your order.

Q 6: What's the payment term?

A: We accept T/T, L/C, WESTERN UNION, PAYPAL, CASH, etc.
