AOYWELL ASP01-T1+T2 B+C 4P AC 275V 385V 420V 7KA 12-5KA 25KA 50KA Surge protector

AOYWELL ASP01-T1+T2 B+C 4P AC 275V 385V 420V 7KA 12-5KA 25KA 50KA Surge protector

Product No.：ASP01-C 4P T1+T2
Online Inquiry

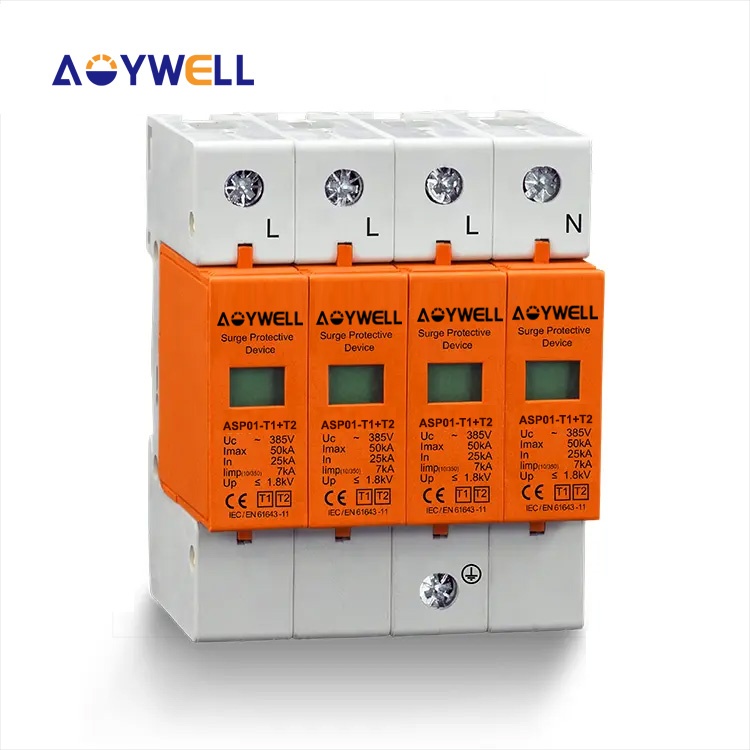

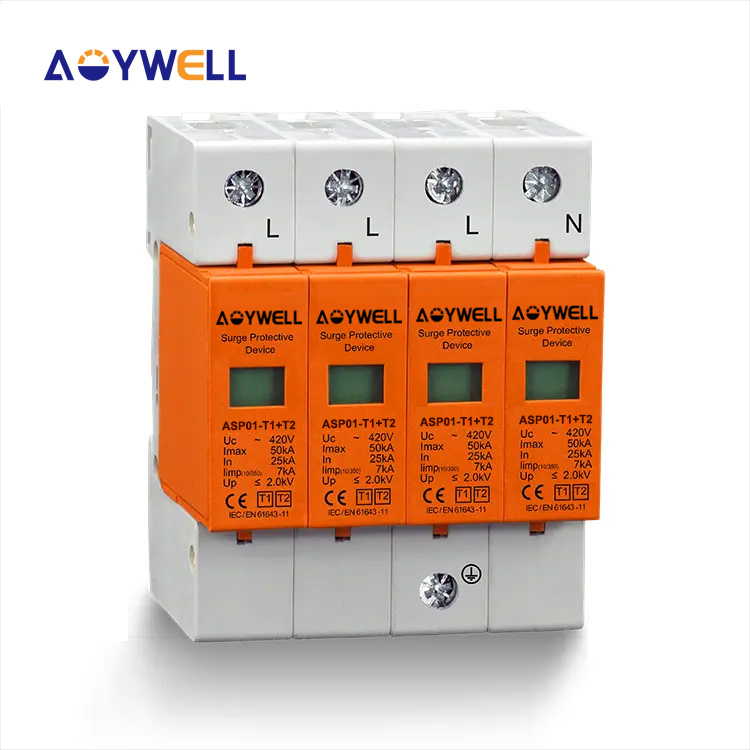

AOYWELL ASP01-T1+T2 B+C 4P AC 275V 385V 420V 7KA 12-5KA 25KA 50KA Surge protector

Product introduction

ASP03-T1 T2  series surge protection device is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz,<380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.

Product features

1.Inside over-current and over-heat protection, temperature control open circuit. 2.Module design, convenient installation, could be replaced. 3.Time of response <25ns 4.The color of visible window shows operating status, green means normal, red means abnormal

Specification

Product Model	ASP01-T1+T2/ B+C / Class 1+class 2
Pole	1P	2P Compact type	3P/ 3P+N	4P
Rated Frequency	One port , Combined type		Combined type
SPD Category	Combined type		Combined type
Test Category	Class B+C/ T1+T2 test		Class B+C/ T1+T2 test
Maximum Continuous Operating Voltage Uc	220V, 275V, 385V		385V, 420V , 440V
Voltage Protection Level Up(8/20μs)	≤1.5kV		≤2.0kV
Nominal Discharge Current ln(8/20μs)	20kA		20kA
Maximum Discharge Current lmax(8/20μs)	40kA		40kA
Response Time tA	L N≤25ns, N+PE ≤100ns
Maximum Discharge Current lmax(8/20μs)	12.5kA	12.5kA	12.5kA	12.5kA
Failure Indication	Green: Normal Red: Failure
Sectional Area Of Wires	6~25mm2
Installation Method	35mm standard rail
Working Environment Temperature	-40℃ ~+85℃
Sheathing Material	Plastic
Protection Level	IP20
Executive Standard	IEC 61643

Factory & Workshop

FAQ:

Q 1: Can I get a sample before the formal order?

A: Of course! We also think sample order is the best way to build the trust.

Q 2: What's the service offered by company?

A: We have the professional enginer team which can design and develop the mold to
arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.

Q 3: How does your factory do regarding quality control?

A: Our SPD produced in accordance with the standards of the ISO9001.
From every single steps all the products will be 100% checked before the shipment.

Q 4: Do you accept OEM business?

A: We accept OEM with your authorization.

Q 5: What's the delivery time?

A: Usually we will ship the goods within 5 working days for stocked products. The specific delivery time depend on the quantity of your order.

Q 6: What's the payment term?

A: We accept T/T, L/C, WESTERN UNION, PAYPAL, CASH, etc.
