AOYWELL DC Combiner box 500V 1000V for 1 2 3 4 5 6 string used plastic string box

Product No.：202341322242
Online Inquiry

Product Description

Application

High reliability

1. With DC FUSE

2. With DC Surge Protection Device

3. With DC circuit breaker or DC load isolation switch.

Strong adaptability

1. IP65 design,waterproof,anti dust and anti ultraviolet.

2. Strict test for high and low temperature,used widely/

3. The simple installation, the simplified system wiring, the convenient wiring.

4. The box body is made of cold rolled steel and other metal materials.

Flexible configuration

5. Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules. Current rating

of the photostatic fuse, circuit breaker, load isolation switch is modified.

Feature

1. In the solar power system, in order to decrease the connecting line, easy maintenance, reduce losses, optimize system

structure, improving the safety and reliability of items, the PV combiner box is usually in need between the solar panels and inverter.

2. Except the PV junction function, the pc combiner box should also have reverse current prevention, over-current protection,over-voltage protection, lightning protection etc a series of perfect protection functions, meanwhile, checking the running state, current, voltage and power after junction, arrester state, collection of DC circuit breaker state and Arc detection,leakage,detection(optional) and so on.

3. The PV combiner box we manufacture is equipped with all the functions mentioned above, configuration with on grid/off grid solar inverter to make up a complete set of solar power system.

4. When choose the pv combiner box, based on the input dc voltage range and output power of inverter, certain qty of panels will be connected in series as a string, certain strings in parallel will connect to the PV combiner box for junction, via control of circuit breaker and protection of arrester, then feed to the inverter.

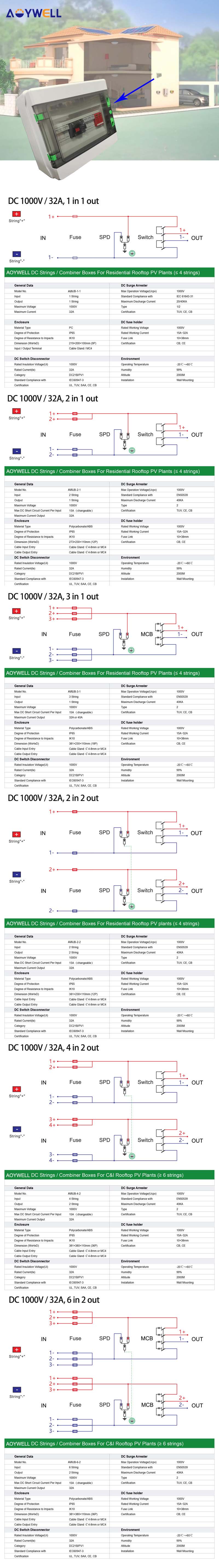

            Model Name
            1/1
            2/1
            2/2
            3/1
            4/1
            4/2
            6/2
            6/3

            System maximum dc voltage
            500V/1000V

            Maximum input current for each string
            30A
            30A
            30A
            30A
            30A
            30A
            20A
            30A

            Maximum input strings
            1
            2
            2
            3
            4
            4
            6
            6

            Maximum output switch current
            30A
            63A
            30A
            63A
            63A
            63A
            63A
            63A

            Number of output strings
            1
            1
            2
            1
            1
            2
            2
            3

            Category of test
            ‖ grade protection

            Nominal discharge current
            20ka

            Maximum discharge current
            40ka

            Voltage protection level
            2.8kv/3.8KV

            Maximum continuous operating voltage Uc
            600v/1000v

            Poles
            2P/3P

            Structure characteristic
            Plug-push module

            Protection grade
            IP65

            Output switch
            DC isolation switch(standard)/DC circuit breaker(optional)

            SMC4 Connectors/dc fuse/dc surge protector
            Standard

            Monitoring module/Preventing diode
            Optional

            Box material
            Plastic

            Installation method
            Wall mounting type

            Operating Temperature
            -25℃--+60℃

            Elevation of temperature
            2km

            Permissible relative humidity
            0-95%, no condensation
