AOYWELL AQ5 63A 100A 125A 160A 200A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A Automatic Transfer Switch

AOYWELL AQ5 63A 100A 125A 160A 200A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A Automatic Transfer Switch

Product No.：2023410222145
Online Inquiry

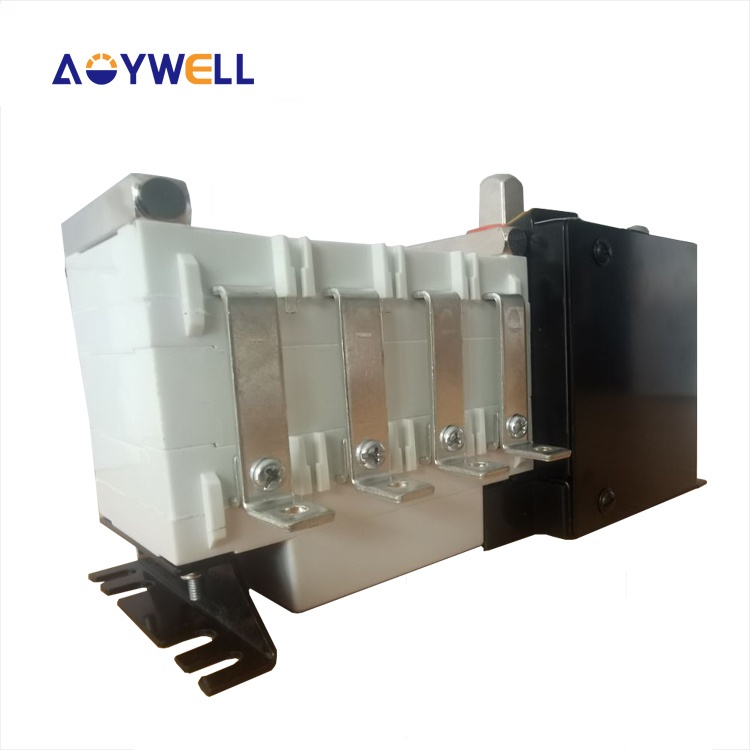

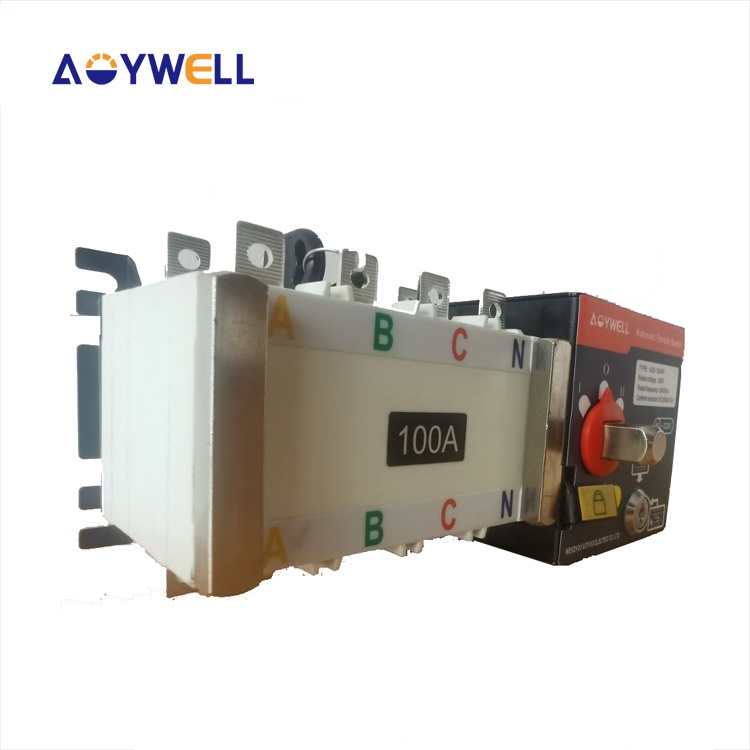

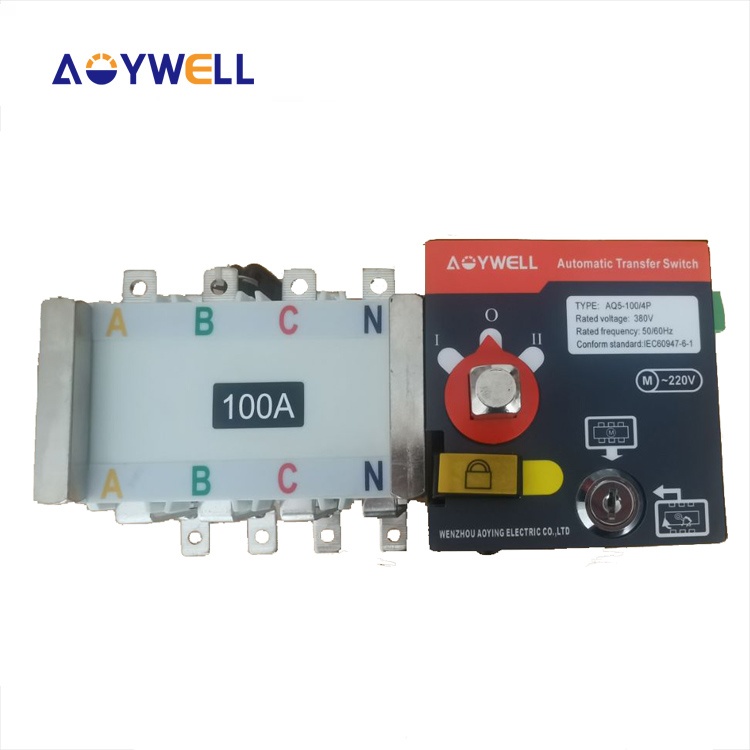

AOYWELL AQ5 63A 100A 125A 160A 200A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A Automatic Transfer Switch

AQ5 series Automatic Transfer switch is applied for three phase four wires or five wires power supply system. AC,50/60Hz, rated current from
16A to 3200A. Automatic or manual Transfer between main power and standby power.
Widely used at the field of important power supply site, which transport, distribution power supply system. For fire
protection,hospital,bank,building, etc, where doesn't allow power off. According to IEC60947, GB14048 etc.

Product Parameters

AQ5 Type Automatic Transfer Switch

Three Positions

Model		AQ5 Serise
Rated current (Ith)		100	250	630	1600	3200
Rated working current(Ie)		16,20,25,32,40,50,63,80,100	125,160,200,225,250	315,350,400,500,630	800,1000,1250,1600	2000,2500, 3200
Rated insulation voltage (Ui)		690V			800V
Rated concussion withstand voltage (Uimp)		8KV
Rated working voltage (Ue)		AC400V
Useing classes		AC-33B			AC-33iB
Rated limited shortcircuit current (Is)		8KA	17KA	26KA	67.5KA
Rated short-time withstand current (Is)		5kA/30ms	10kA/60ms	12.6kA/60ms	32kA/60ms
Transfer I-II or II-I		2.5s	0.6s		1.2s	2.4s
Control power voltage	Start	20W	325W	355W	440W	600W
Rated frequency	Normal		62W	74W	98W	120W

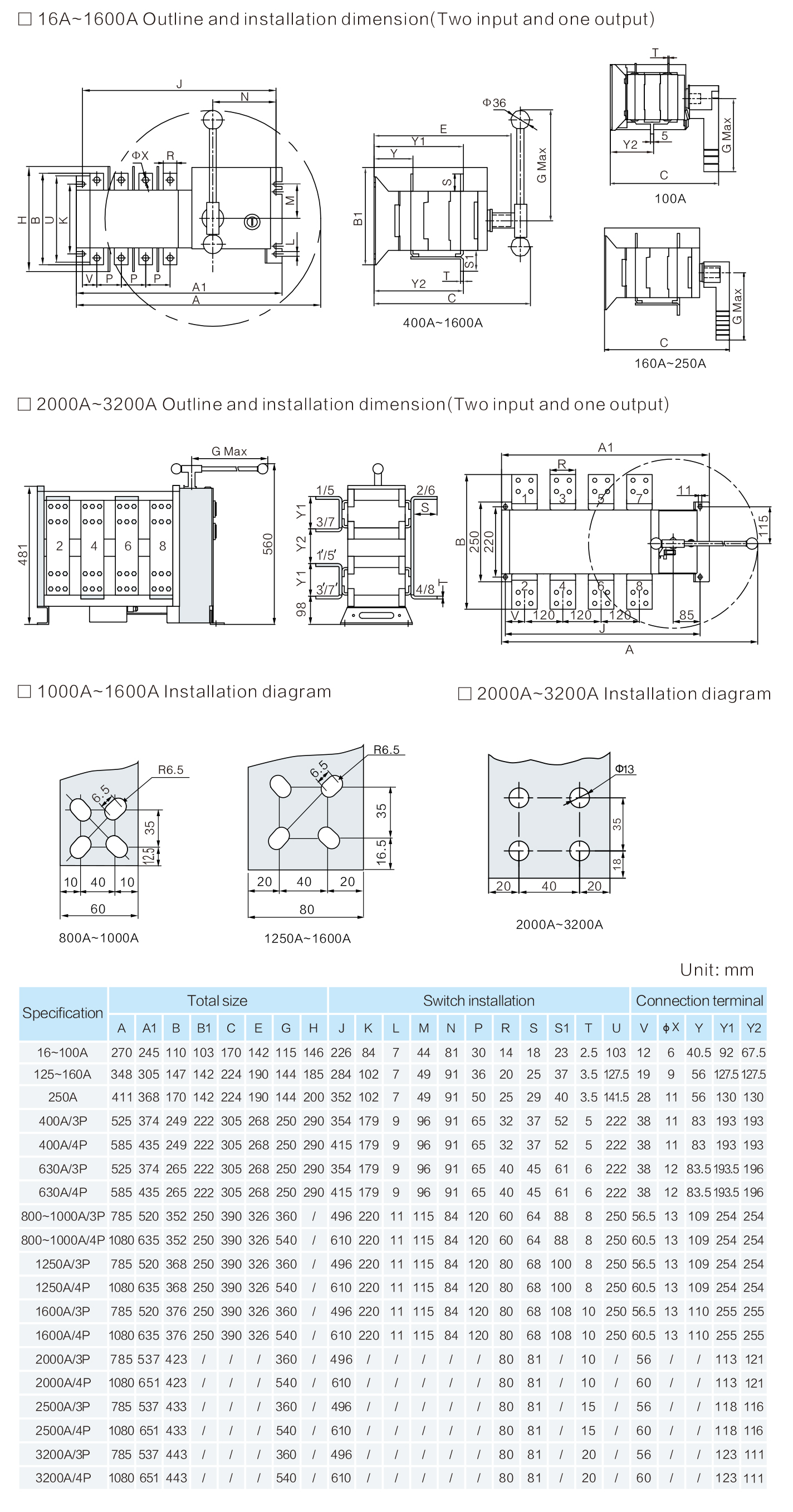

Outline and installation dimension

Factory & Workshop

Q1:What is your terms of payment?
A1:T/T ,L/C at sight

Q2:What is your terms of delivery?
A2:EXW, FOB,CIF,CNF

Q3:How about your delivery time?
A3:Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4:Can you produce according to the samples?
A4:es, we can produce by your samples or technical drawings. We can build the mould and fixtures.

Q5:Is samples available?

A5:Few pcs of Some products samples are available, but the freight should be collected.

Q6:What is your terms of packing?

A6:Generally, we pack our goods in neutral cartons.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q7:Do you test all your goods before delivery?

A7:Yes, we have 100% test before delivery.
