AOYWELL AQ3W Automatic Transfer Switch 6~63A

AOYWELL AQ3W Automatic Transfer Switch 6~63A

Product No.：202341022717
Online Inquiry

AOYWELL AQ3W type 2P 3P 4P AC 220V 240V 380V 415V Automatic Transfer Switch 6 to 63A

Description

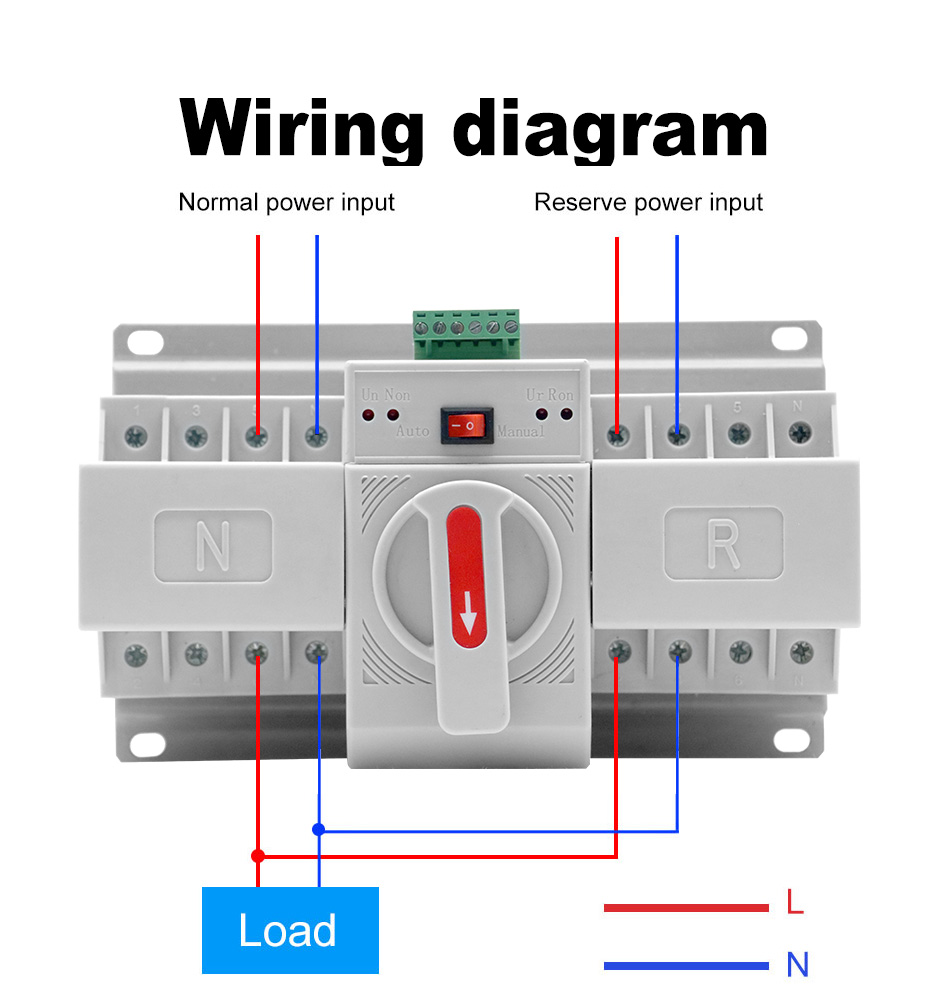

Dual Power Automatic Transfer Switch (A.T.S for short) applies to the terminal double-loop power supply system that 50Hz/60Hz, rated operating voltage 220V(2p),380V (3p and 4p), rated current 10 ~ 63 A. It can automatically switch the normal power to reserved power to prove the reliability of power supply, mainly used for fire pumps, smoke fans, elevators, pumps, lighting in high-rise buildings, shopping malls and other places. When the main power supply is normal,using the automatic model,the circuit breaker of reserve power supply is off,the circuit breaker of main power supply is on.When one phase or all three phase of the main power supply is off,the ATS will convert to the reserve power supply(the reserve power is normal),when the main power is normal,the reserve power will recover back to main power again.

Detailed Data

Technical data

Product Name	ATS Automatic Transfer Switch
Rated current	6/10/16/20/25/32/40/50/63A
Operation	Manual/Automatic
Amount of poles	2/4Poles
Working Frequency	50/60hz
ATS Class	CB
Rated voltage	AC 230V / AC 400V
Conversion Time	＜2S
Product size	185138115mm
Conversion Mode	Automatic return

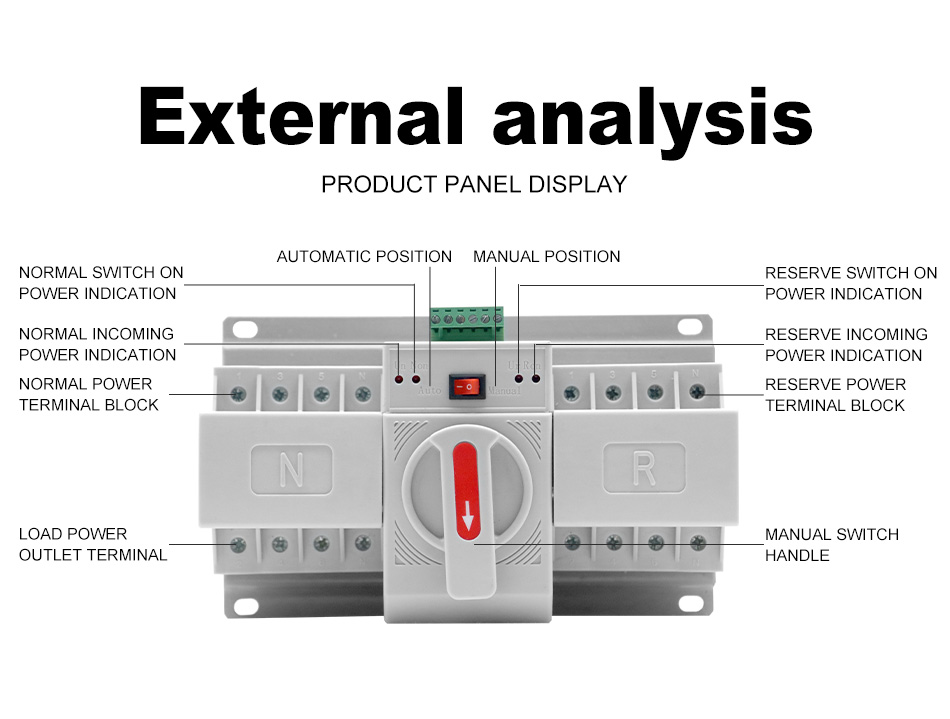

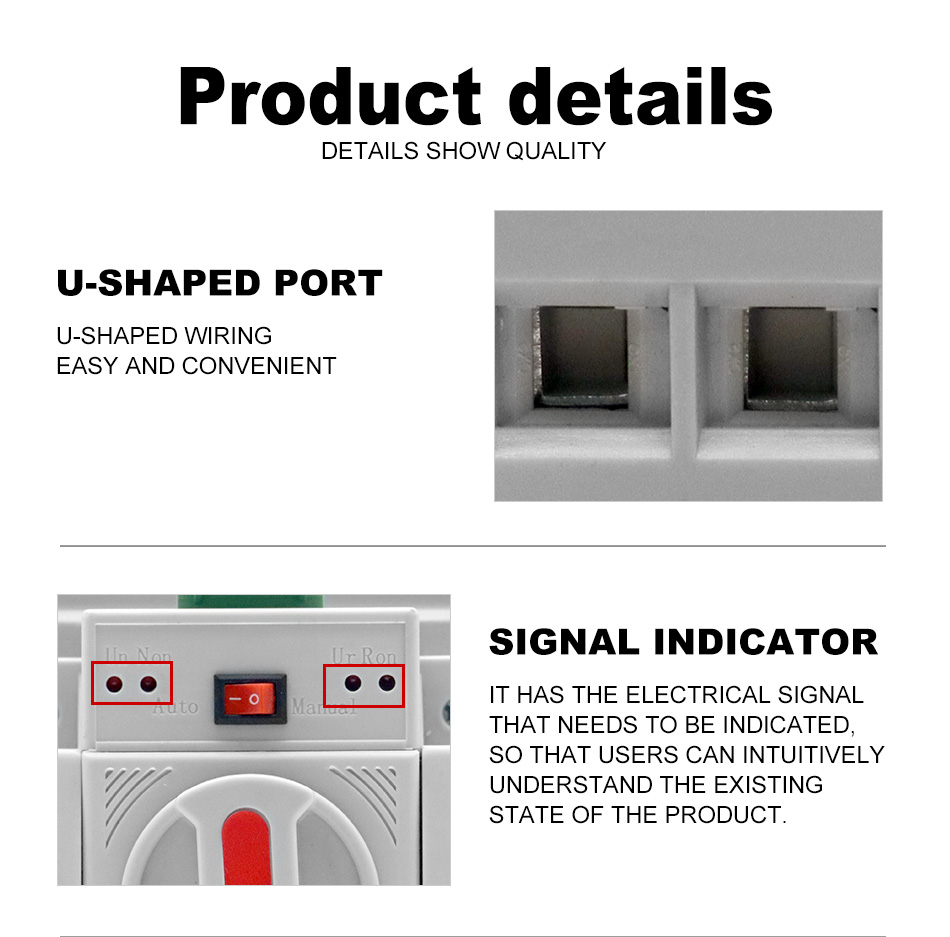

Display	Pilot lamp
